ZW20-12 Outdoor vacuum circuit breaker – Intelligent Protection for Modern Overhead Distribution

Engineered for smart grid readiness and harsh environmental conditions, the ZW20-12 outdoor vacuum circuit breaker (VCB) delivers advanced, self-sufficient protection for 12kV overhead power lines. Combining vacuum interruption technology with integrated intelligence, this pole-mounted recloser is ideal for utilities, renewable energy integrators, and rural electrification projects seeking to minimize outages and automate fault response.

Unlike traditional switchgear-dependent breakers, the ZW20-12 intelligent overhead line protection system operates autonomously—featuring an embedded microprocessor-based controller, high-accuracy current/voltage sensors, and a maintenance-free spring mechanism. It supports customizable protection curves, multi-shot auto-reclosing (up to 4 sequences), and real-time event logging to distinguish permanent faults from temporary disturbances like wind-induced contact or wildlife interference.

Key advantages of this robust outdoor solution include:

• Rated voltage: 12kV; short-circuit breaking capacity up to 16kA or 20kA

• Fully sealed outdoor VCB design with IP67-rated enclosure and silicone rubber insulation for UV, salt fog, and pollution resistance

• Low power consumption—compatible with solar-powered operation in off-grid areas

• Optional communication modules (GPRS, LoRa, RS485) for remote SCADA integration

• Compliant with IEC 62271-100 and DL/T 403 standards for outdoor reclosers

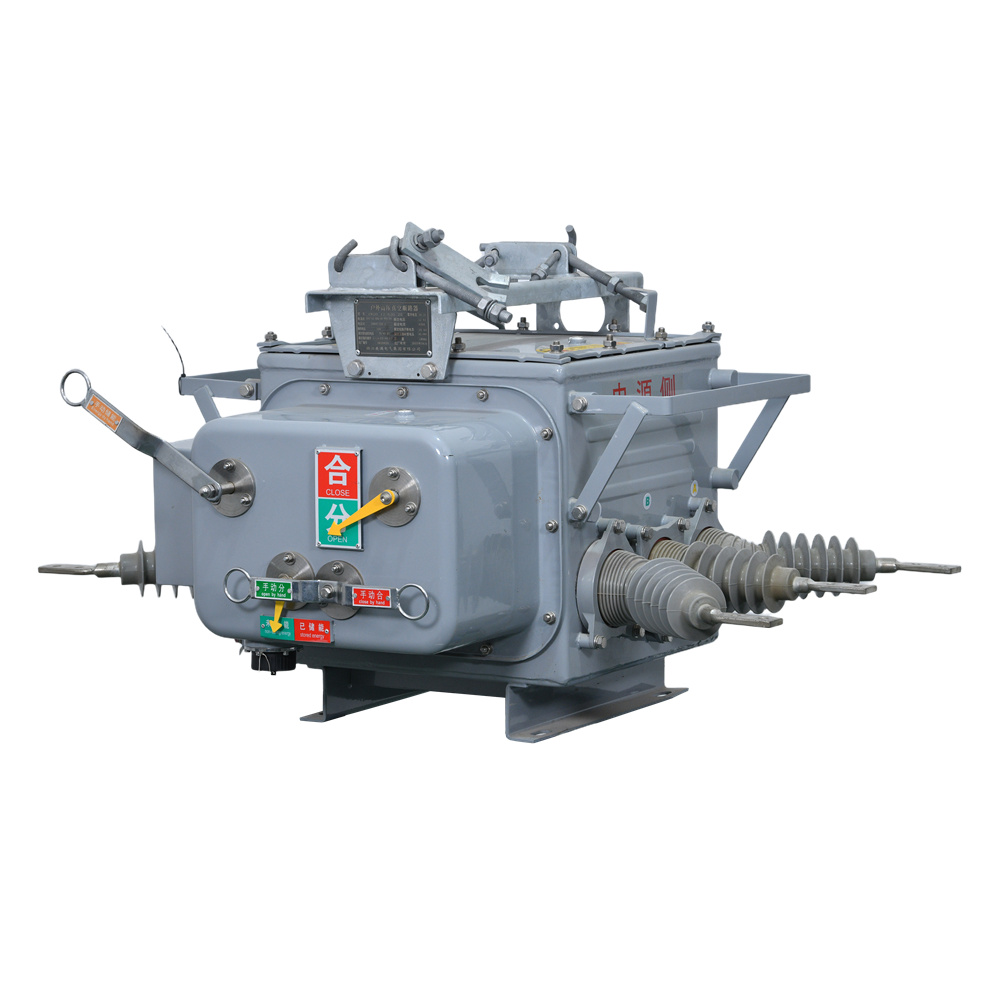

The streamlined, weather-tight housing shown in the image above ensures decades of reliable service—even in extreme climates ranging from -40°C to +70°C.

By deploying the ZW20-12 outdoor vacuum circuit breaker (VCB), operators gain faster fault isolation, reduced truck rolls, and a scalable foundation for building resilient, self-healing distribution networks.
