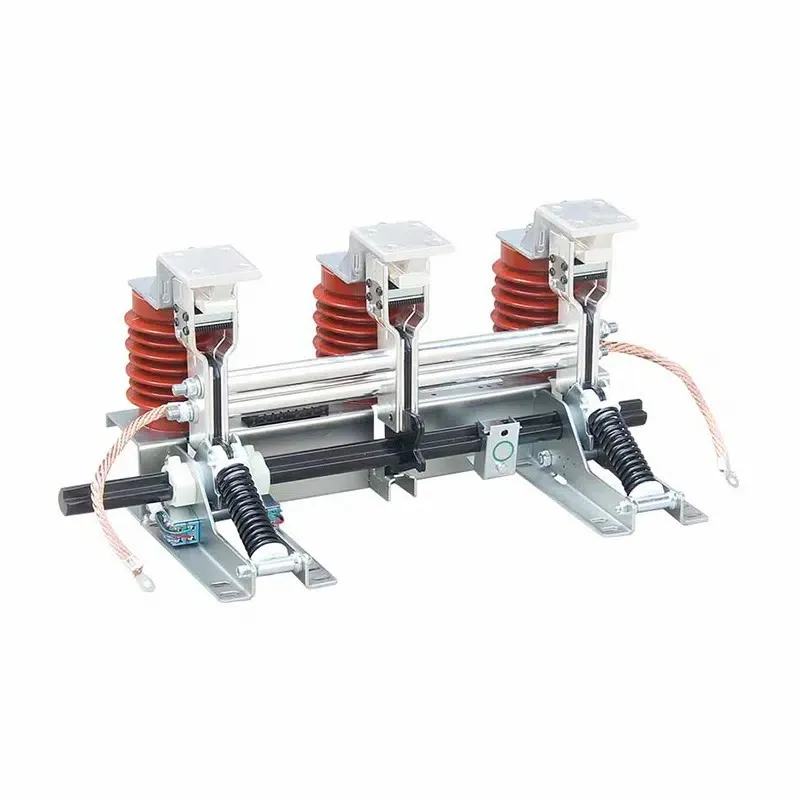

The JN17-12/40 Indoor High Voltage earthing switch is designed for 3-10kV AC Power Systems, operating at 50-60Hz. Its improved ES1 type ensures safe, reliable earthing for medium-voltage indoor switchgear. Compact, modular design supports industrial, commercial, and utility applications, providing protection, fault isolation, and personnel safety in modern high-voltage systems.

Introduction

The JN17-12/40 Indoor high voltage earthing switch is a specialized component for medium-voltage electrical systems, designed for safe earthing, fault isolation, and integration into modular high-voltage switchgear. Supporting 3-10kV AC systems with a frequency range of 50-60Hz, this improved ES1 type earthing switch is essential for ensuring both operational safety and equipment protection in industrial, commercial, and utility environments.

Earthing Switches are critical in modern power distribution systems. They provide a secure method to discharge residual currents, isolate circuits during maintenance, and protect personnel and equipment from electrical hazards. The JN17-12/40 combines durability, safety, and modular flexibility to meet these requirements effectively.

Key Features of JN17-12/40 Earthing Switch

1. Rated Voltage: Operates reliably within 3-10kV AC power systems.

2. Frequency Compatibility: Supports 50-60Hz operations.

3. Improved ES1 Type Design: Offers enhanced mechanical reliability and safety.

4. Indoor Application: Designed for installation in indoor switchgear rooms.

5. Modular Structure: Easily integrates into high-voltage switchgear cabinets.

6. Safety Interlocks: Prevents incorrect operations and protects operators.

7. Compact Dimensions: Optimizes use of switchgear space.

8. Three-Phase Earthing: Ensures balanced grounding across circuits.

9. High Mechanical Endurance: Withstands repeated switching operations.

10. Compliance with Standards: Meets IEC and GB international standards.

Technical Specifications

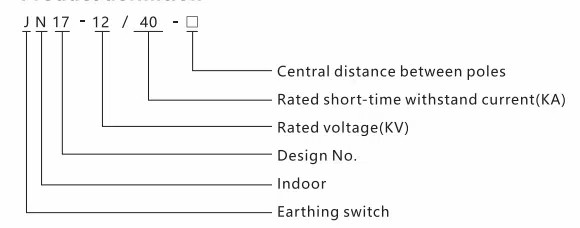

• Model: JN17-12/40

• Rated Voltage: 3-10kV AC

• Rated Current: 630A – 1250A

• Short-Time Withstand Current: 20kA – 31.5kA

• Peak Withstand Current: 40kA

• Rated Short-Circuit Making Current: 31.5kA

• Insulation Level:

• Power Frequency Withstand Voltage: 28kV

• Lightning Impulse Withstand Voltage: 75kV

• Mechanical Endurance: ≥2000 operations

• Ambient Temperature: -5°C to +40°C

• Installation: Indoor modular switchgear integration

Functions and Applications

1. Earthing Function

The JN17-12/40 provides a reliable earthing path for medium-voltage circuits during maintenance, inspection, and fault conditions. It ensures that residual currents are safely discharged and prevents accidental energization.

2. Fault Isolation

The switch enables safe isolation of circuits to protect transformers, circuit breakers, and other high-voltage equipment from fault currents and overloads.

3. Modular Switchgear Integration

The compact, modular design ensures compatibility with high-voltage indoor switchgear cabinets, enabling efficient system layout and future upgrades without major modifications.

4. Safety Interlocks

Mechanical and electrical interlocks prevent operation while the system is live, protecting personnel and maintaining operational safety.

5. Industrial and Commercial Applications

• Medium-voltage distribution in manufacturing plants, refineries, and processing units.

• Power distribution substations and utility networks.

• Commercial complexes, data centers, and hospitals.

• Renewable energy plants including solar and wind farms.

• Transportation and rail infrastructure requiring medium-voltage earthing solutions.

Design Advantages

• Compact and Space-Saving: Ideal for indoor switchgear rooms with limited space.

• Enhanced Safety Mechanisms: Prevents operator errors and accidental energization.

• High Insulation and Reliability: Withstands voltage stress and ensures long-term performance.

• Modular Flexibility: Supports future expansion, system upgrades, or retrofitting.

• Durable Mechanical Components: Designed to endure repeated operations over years of service.

Installation Guidelines

1. Site Verification: Check switchgear room conditions including temperature, humidity, and dust levels.

2. Mechanical Assembly: Install the earthing switch securely within the modular switchgear frame.

3. Interlock Alignment: Ensure all mechanical and electrical interlocks are correctly positioned.

4. Testing Before Energization: Verify continuity, insulation resistance, and mechanical operation.

5. Commissioning Checks: Perform routine commissioning according to IEC or local standards.

Maintenance Recommendations

• Regular inspection of mechanical and electrical components.

• Lubrication of moving parts and tightening of connections to prevent corrosion.

• Periodic insulation resistance testing to ensure safety.

• Functional testing of interlocks to guarantee operational reliability.

• Scheduled preventive maintenance to avoid unplanned downtime.

Advantages of Using JN17-12/40 Earthing Switch

1. Operational Safety: Protects personnel during maintenance and inspection.

2. Equipment Protection: Reduces risk of damage during fault currents or overloads.

3. Reliable Performance: Stable operation under medium-voltage AC conditions.

4. Space Efficiency: Compact design fits indoor modular switchgear layouts.

5. International Standard Compliance: IEC and GB standards ensure quality and safety.

6. Long-Term Cost Savings: Minimal maintenance and reduced downtime.

7. Flexible Integration: Supports both new installations and retrofits.

Compliance and Standards

The JN17-12/40 Earthing Switch is built to meet international and national standards:

• IEC 62271-102 – AC disconnectors and earthing switches

• IEC 62271-200 – Metal-enclosed switchgear for medium voltage

• GB/T 3906-2006 – High-voltage switchgear and controlgear standards

• ISO 9001 – Quality management certification

Integration with Indoor Switchgear

• Ensures safe isolation of circuits during maintenance.

• Provides balanced earthing across three-phase systems.

• Protects against short-circuit and overload conditions.

• Supports monitoring and control devices for real-time diagnostics.

• Simplifies replacement and maintenance without disrupting power supply.

Future of Medium Voltage Earthing Switches

Modern power systems increasingly integrate earthing switches like the JN17-12/40 with:

• Intelligent Monitoring Systems – Real-time diagnostics and predictive maintenance.

• SCADA Integration – Remote control and monitoring of medium-voltage systems.

• Smart Grid Applications – Supporting renewable energy and modern power distribution.

• Eco-Friendly Design – Energy-efficient operation with minimal losses.

The JN17-12/40 is positioned as a future-ready solution for medium-voltage switchgear, combining safety, reliability, and flexibility.

The JN17-12/40 Indoor High Voltage Earthing Switch is a highly reliable, safe, and modular solution for 3-10kV AC medium-voltage systems. Its improved ES1 design, safety interlocks, and high mechanical endurance make it ideal for industrial, commercial, and utility applications.

By integrating the JN17-12/40, operators can ensure personnel safety, equipment protection, and long-term reliability. Its modular compatibility with indoor switchgear supports efficient installation, future expansion, and maintenance. Investing in this earthing switch is essential for secure, reliable, and efficient medium-voltage power distribution systems.
